Vacuum Samplers, Planting Heads, Temperature Measuring Equipment, and More
Discover the amazing range of vacuum samplers, planting heads, temperature testers, and more available from Pneumac. Contact our team today for details or to arrange worldwide shipping.

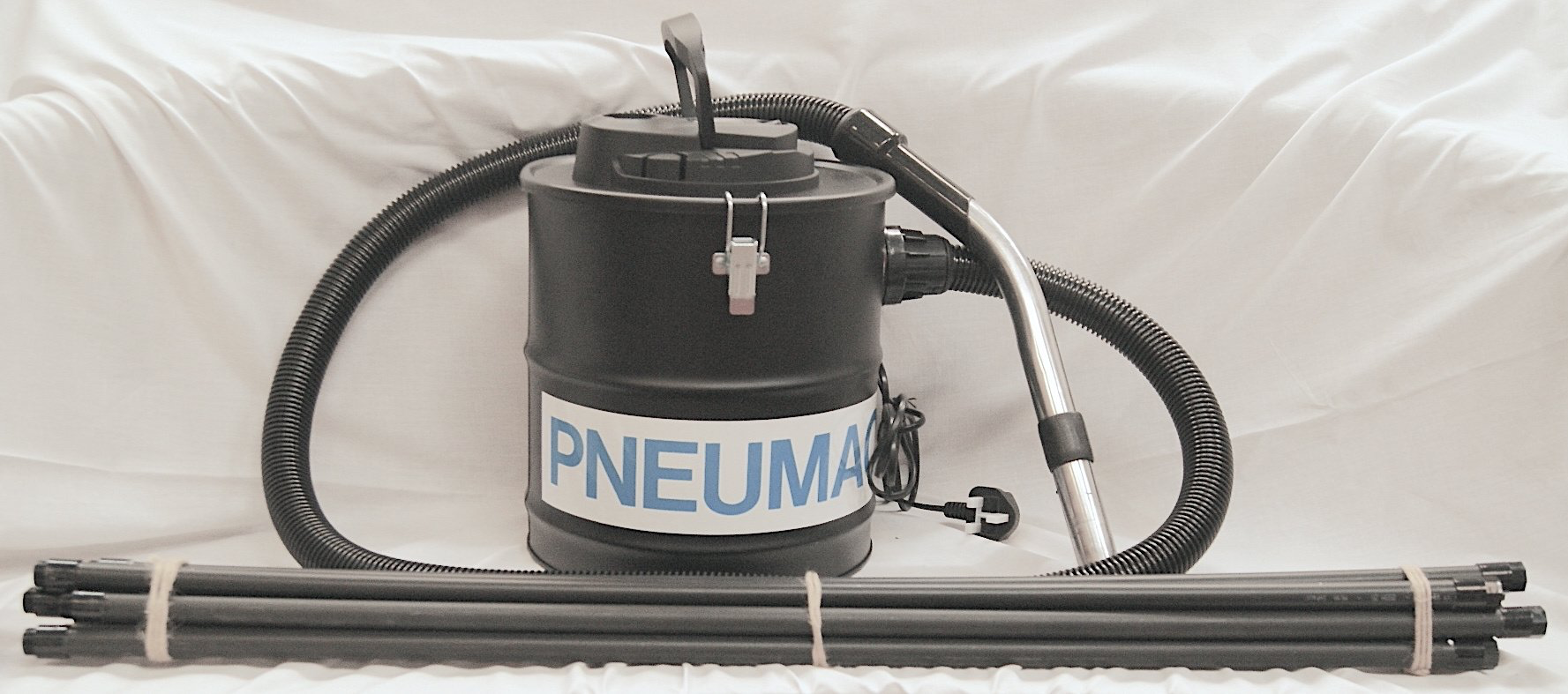

Vacuum Sampling Machines
Vacuum Sampler mini
Pneumac Temperature Measuring Equipment
A simple to use but effective handheld instrument to monitor. stored grain at your convenience. There is a choice of stainless steel, fibreglass or PVC, they are lightweight, easy to use and accurate. They are low-cost to run and have a high visibility display.
Pneumac Planting Heads
We manufacture a range of Vacuum Planting Heads in a selection of materials and sizes. Usually brass, stainless steel or lightweight plastics.
Planting Heads are used in many laboratories and other test situations to quickly place (Plant) seeds in a tray or on to a paper towel. Typically, 100 holes are used, although some customers specify to have more or less.
The Plates are usually made from austenitic (non-magnetic) stainless or brass drilled or laser cut with holes in the following sizes:
0.4, 0.6, 0.7, 0.8, 1.0, 1.2, 1.5 & 1.8mm diameter.
The size of the head and configuration or pattern of holes can be manufactured to a customer’s specification.
The Release Valve applies suction to hold the seeds until in position; simply releasing the button allows the seeds to be positioned.
Manufactured in brass or alloy and plastic with stainless steel plates.
Sizes and designs from stock or to order.
0.4 - 1.8mm holes.
High-capacity vacuum source available.
Pneumac Jacobsen Seed Testing Bath.
This equipment allows setting and maintenance of internationally recognised conditions for seed germination testing, where an eight-hour period of operating at 30°C is followed by a sixteen-hour period at 20°C. The thermostatically controlled water circulator is intended for use in an environment of 17 to 18°C. This will allow a natural radiation of heat through the bath bottom and a drop to 20°C will take about 2 hours without chilled water assistance. However, the PTC40 temperature controller will accept cooling water into its heat exchanger if there are difficulties in maintaining the lower set point.
The stainless-steel water bath is designed to hold 13 glass plates about 25 mm above the water level. Each plate will hold five test pads that are individually protected by a small plastic cover. These covers provide controlled microenvironments to each germination test. Stainless Steel water bath with high flow capability for fast responsive control of pre-set temperatures.
Programmable temperature and time controller, allowing three user defined programmes or choice from six predefined programmes.
Design optimised to operate at the 20°C and 30°C standard germination cycle.
PTC40 temperature controller with 2000-watt heater and a high flow circulation pump. Standard operating voltage is 220/250 Vac.
Facility to assist water bath cooling with chilled water if ambient is too high.
Stainless steel support frame. Focused temperature probe to detect seed bed temperature.
